Basic Info.
Model NO.
ZP100-9C
Certificate
CE SGS
Pressure
1000kn
Speed
Controlled by VFD
Mold
Made of Titanium Alloy
Max Product
80mm Tablet
Depth of Fill
Max 90mm
Weight
7000kg
Application
300g 350g Tablet Production
VFD Brand
Innovation Brand
Dies Quantity
9sets
Turtable Material
Cast Iron
Key Part
Big Gear Box Under Machine Bottom Frame
Customers
More Than 20 Sets in USA
Transport Package
Standard Exporting Packing
Specification
1000Kn press machine
Trademark
Chenguang rotary tablet press
Origin
Changzhou of China
HS Code
8474809090
Production Capacity
1-100 Sets Per Year
Product Description

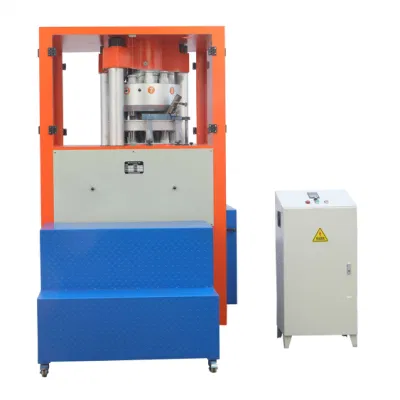

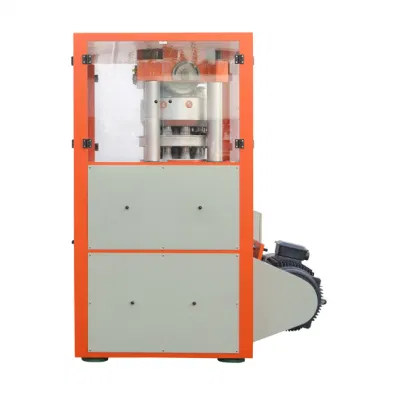

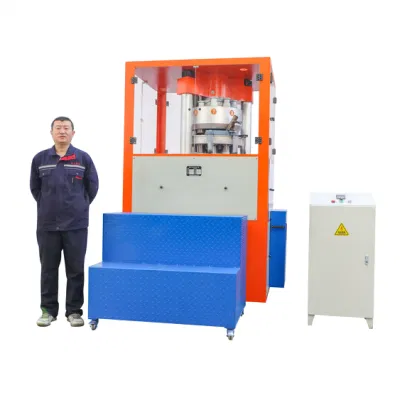

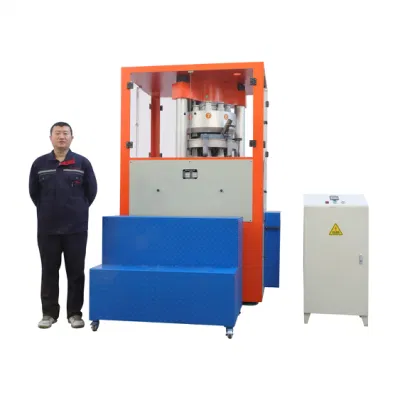

ZP100-9C super large rotary press machine
used to press 300g -350g big tablets, such as 300g/350g Calcium hypochlorite tablet.
Introduction:
ZP100-9C can press any granular material into large tablets of round or non-round shape. It was specially developed for large tablet production in 300g -350g.
ZP100-9C super large rotary tablet press machine , own a bigger depth of fill 90cm, and own a bigger main pressure 1000kn+Pre-pressfure 200kn. It is an idea machine for water treatment facory on high capacity 300g-350g tablet production .
* has pre-press wheel 200Kn, and 1000Kn main pressure, which guarantee the quality of finished tablets.
* Moulds are made of Titanium Alloy material.
*Own a big powerful gear box under machine bottom frame.
* Other parts connecting with material are made of Titanium material.
* Transparent window is made of plexiglass, prevent powder from cross-contamination
* All gearing parts are fixed in machine inner, avoid it of corrosion.
* With a frequency protection device, if pressure is too large, the tablet press machine can be automatically shut down to protect the body from damage.
used to press 300g -350g big tablets, such as 300g/350g Calcium hypochlorite tablet.
Introduction:
ZP100-9C can press any granular material into large tablets of round or non-round shape. It was specially developed for large tablet production in 300g -350g.
ZP100-9C super large rotary tablet press machine , own a bigger depth of fill 90cm, and own a bigger main pressure 1000kn+Pre-pressfure 200kn. It is an idea machine for water treatment facory on high capacity 300g-350g tablet production .
Following is the specification and ZP100-9C machine for your reference:
| Model | ZP100-9C |
| Dies | 9 sets |
| Max main pressure | 1000 Kn |
| Max pre-pressure | 200 Kn |
| Max Dia of Tablet | 80 mm |
| Depth of Fill | 90mm |
| max Thickness of Tablet | 54 mm |
| Turret Speed | 1--10r/min |
| Max Production Capacity | 1-5400 pcs/h(adjustable) |
| Motor | 45 kw 960 r/min 380 v / 50 hz/3p |
| Overall Size(with hopper) | 2200×1600×2950mm |
| Net Weight | 7000kg |
We--Chenguang Pharmaceutical Machinery, established in 1986 year, are a real manufacturer from China of various kinds of tablet press machines, such as rotary tablet press machines, large rotary TCCA tablet press machines, lab/small tablet press machines, hydraulic tablet press machines, single punch tablet press machines and so on, which have widely been used in food, electronic, chemical, pharmacy and so on.
Our tablet press machines, not only popular in China, also have been exported to Brazil, Japan, USA, Canada, Australia, Thailand, Malaysia, UK, Singapore and so on. Especially our large rotary TCCA tablet press machines, by virtue of high production capacity in 100g 200g 250g Chlorine tablets, 5 sets of them have been used by Hebei Jiheng Chemical, which is a famous group company for pool treatment chemicals in China.
Relying on excellent effects in this water treatment field, they also attracted companies from abroad, for example Brazil Genco Chemical and Japan Nan kai Chemical. We have reached the long-term cooperation agreement with such clients.
Our tablet press machines, not only popular in China, also have been exported to Brazil, Japan, USA, Canada, Australia, Thailand, Malaysia, UK, Singapore and so on. Especially our large rotary TCCA tablet press machines, by virtue of high production capacity in 100g 200g 250g Chlorine tablets, 5 sets of them have been used by Hebei Jiheng Chemical, which is a famous group company for pool treatment chemicals in China.
Relying on excellent effects in this water treatment field, they also attracted companies from abroad, for example Brazil Genco Chemical and Japan Nan kai Chemical. We have reached the long-term cooperation agreement with such clients.
Characters:
* has pre-press wheel 200Kn, and 1000Kn main pressure, which guarantee the quality of finished tablets.
* Moulds are made of Titanium Alloy material.
*Own a big powerful gear box under machine bottom frame.
* Other parts connecting with material are made of Titanium material.
* Transparent window is made of plexiglass, prevent powder from cross-contamination
* All gearing parts are fixed in machine inner, avoid it of corrosion.
* With a frequency protection device, if pressure is too large, the tablet press machine can be automatically shut down to protect the body from damage.
