Basic Info.
Model NO.
DPP series
Packaging Material
PVC/PE/PS/Alu/Pet, etc
Packaging Type
Blister
Usage
Outer, Inner
Type
General
Cutting Frequency
10-30times/Min
Mould Cooling
Tap Water or Recycling Water
Max. Forming Depth
26mm or Customized
PVC Hard Film
0.15-0.5*(80-420) mm
Ptp Aluminum Film
0.02-0.035*(80-420)mm
Filling Volume
1ml-150ml or Customized
Capacity
2400-14000PCS/H
Feeding Method
Automatic
Dialysis Paper
50-100g*(80-420)mm
Catalog
Dpp80-Dpp420 Series
Total Power
220/380V 50Hz or Customized
Travel Range
40-240mm
Marketing Type
Hot Product 2023
Extended Warranty
Support
Packaging Materials
PVC/PE/Pet/Alu/Paper, etc
Transport Package
Wooden Box
Specification
DPP series
Trademark
Migrand
Origin
China
HS Code
8422303090
Production Capacity
2400-14000PCS/H
Product Description
Generally Purchased Together
DPP 80-420 Full Automatic Lifetime Service Pvc/Alu Blister Thermoforming Filling And Sealing Packaging Machine Sauce Jam Butter Honey Blister Packing Machine For Liquid

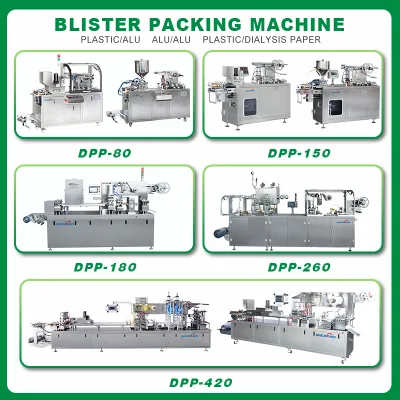

DPP series blister packaging machine is a new generation of products through painstakingly researched and developed. Punch frequency can achieve to 200 times, it is 4 times higher than normal blister packaging machine. It combines the advantages of flatbed and drum blister packaging machine , and with a special dedicated tablet feeder, so it has some features like high punching frequency, energy consumption province, accurate, stable, easy to replace mold, high yield and so on.

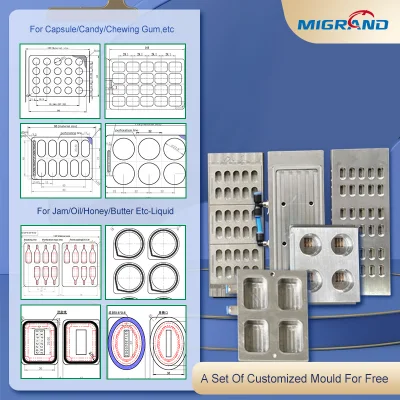

The machine can be applied to the industries of pharmaceutical, food, cosmetics and agrochemical products by changing the feeder and the mould. Such as capsule, tablet, pills, liquid, olive oil, butter, paste, jam, drops, powder, essence oil, etc.
| Model | DPP 80-105 | DPP 110-150 | DPP 155-180 | DPP 185-260 | PP DPP 350 | DPP-420S | DPP-420F(joy egg) |
| Punch frequency | 10-33 times/min | 10-35 times/min | 10-35 times/min | 10-40 times/min | 12-28 times/min | 6-35 times/min | 10-25 times/min |
| Max. Forming Area | 105*70mm | 145*110mm | 175*110mm | 250*140mm | 350*240mm | 400*180mm | 390*180mm |
| Max Forming Depth | 26mm or customized | 32mm or customized | 26mm or customized | ||||
| Filling Volume | 0.5-75ml or customized | 0.5-150ml or customized | 0.5-75ml or customized | ||||
| Stroke range | 30-80mm | 50-120mm | 50-120mm | 40-140mm | 100-240mm | 40-180mm | 40-180mm |
| Air pressure | 0.4-0.6MPa | ||||||
| Total power supply | 220V 50Hz, 2.8KW | 380V 50Hz, 3.8KW | 380V 50Hz, 3.8KW | 380V 50Hz, 8.5KW | 380V 50Hz, 8.5KW | 380/220V 50Hz 9.7kw | 380/220V 50Hz 22kw |
| PVC hard Film | (0.15-0.5)*110mm | (0.15-0.5)*150mm | ( 0.15-0.5)*180mm | (0.15-0.5*250mm | PP 1.1mm*350mm | 0.15-0.5*420mm | 0.15-0.5*420mm |
| PTP Aluminum film | (0.02-0.035)*110mm | (0.02-0.035)*150mm | (0.02-0.035)*180mm | (0.02-0.035)*250mm | PP/PE 0.1*350mm | 0.02-0.035*420mm | 0.02-0.035*420mm |
| Dialysis Paper | 50-100g*110mm | 50-100g*150mm | 50-100g*180mm | 50-100g*250mm | 50-100g*350mm | 50-100g*420mm | 50-100g*420mm |
| Mould cooling | Tap water or recycling water | ||||||
| Overall Dimension | 1840*590*1100mm | 2315*635*1405mm | 2550*640*1600mm | 3250*710*1700mm | 5250*1110*1900mm | 4300*820*1600 | 6000*950*2000 |
| Machine Weight | 450KG | 820KG | 870KG | 1400KG | 3200KG | 2000KG | 2500KG |
Hunan Migrand Machinery Technology Co.,Ltd is specialized in the packing machinery for more than 10 years. such as pharmaceutical packing machine,plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc..
Our machines were exported to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea, the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago, Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morocco etc. Good reputation of the machine quality and after sales service always gained from customers.
Various kinds of factories and companies in different fields are cooperating with us. Such as pharmaceutical, food , supplement, stationery, hardware, agricultural and chemical factories. For pesticide, fertilizer, personal care products, like cosmetics, daily use products etc..
Our sales team are professional in communicating with customer about different aspects of our machines. We also have our own technical research group to do the new products development and professional group for customer overseas after sales service . For customer who doesn't need our engineer for machine installation, we will provide them the detail and professional machine installation and running video for support and help.
Welcome to get in touch with us , we are always here for you....
Welcome to get in touch with us , we are always here for you....
Q1: What is your capability?
MiGrand Machinery is a manufacturer of pharm and packing equipment. Qualified & high-level machines and packing solution & technology are our strengths over our competitors
Q2: How do you guarantee your quality and service?
We have serious QC team to control the details from the small parts to the assembled machine. And our service and technical team are glad to answer and solve all problems if you meet during using our products.
Q3: What is your WARRANTY?
One year warranty for the brand-new machine, and whole life after sale service, eg. spare parts, technical support etc.
Q4: How to pay? (Payment term)
T/T, L/C, PayPal, Western Union, Cash even credit Card are all accepted
Q5: How long could you finish the machine after placing the order? (Delivery time)
Normally: 15-30 days, if for stock products, it will be around 3 days.
Q6: Do you mind if we are agents?
End users and agents are both welcome. And now we are recruiting Global Agents/Wholesalers!!!
Join Grand Machinery & Discover More
Q7: More questions are appreciated
Pls contact us freely if you have any other question or need.
