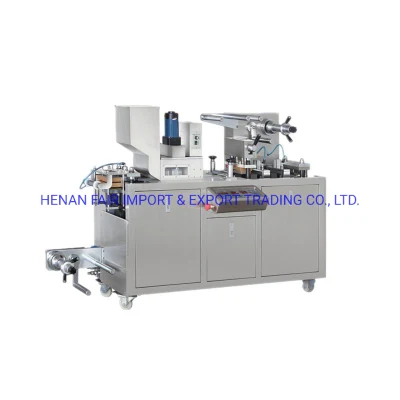

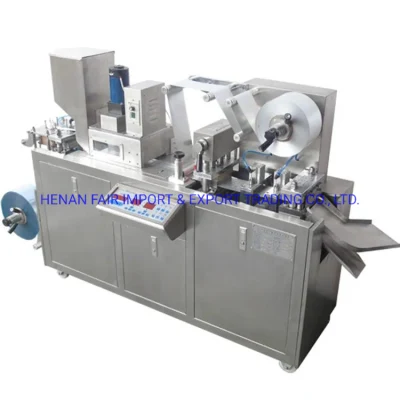

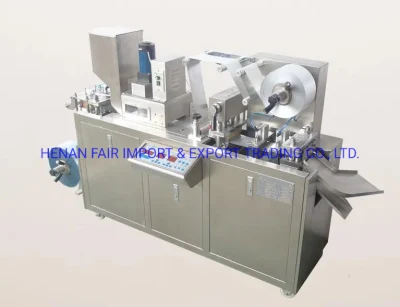

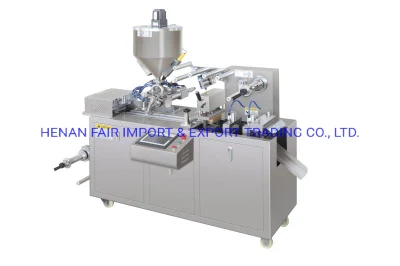

Factory Price Dpp/Dpb Automatic Blister Pack Packaging Machine with CE

FAIR flat-plate Aluminum- aluminum, aluminum-plastic blister packaging machine which integrates many functions including feeding,  heating,  forming, PTP feeding, sealing of and PTP, batch number printing, indentation line making, etc. It is suitable for all capsules, tablets, sugar-coated tablets, honey pills, injections, ampoules, etc. CapsulCN The products have a long shelf life, good sealing performance, beautiful appearance, safety, and hygiene, conforming to the GMP production standards.

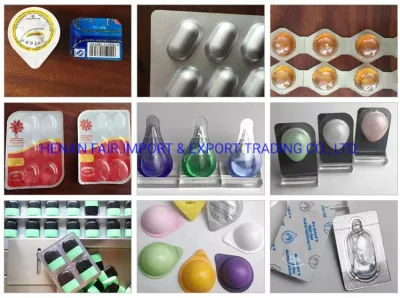

This blister packing machine is suitable for pharmaceutical, food, and health products industries, packing vegetarian tablets, sugar-coated tablets, and capsules, can also pack small pieces of food, hardware parts, and electronic components.

This packaging way(blister pack) can improve the product's quality, and enhance the product's added value.


Model	FM-DDP-100	FM-DDP-150F	FM-DDP-260	FM-DDP-320
Punch frequency	10-33times/min	10-33tims/min	10-35times/min	6-50times/min
Production capacity	2400plates/hour	2400plates/hour	1200-4200plates/hour	35000-23000pcs/hour
Max. Forming area & Depth	105x70(standard depth <15mm)	115x90(standard depth <15mm)	145xll0(standard depth <15mm)	240x70x26mm
	Max. Depth 25mm	Max. depth 26mm	Max. depth 26mm
Standard Stroke range	30-80mm	35-90mm	50-120mm	40-160mm
Standard plate size	80x57mm	80x57mm	80x57mm	80x57mm
Air pressure	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
Compressed air required	Air compressor>0.3m3/min	Air compressor>0.3m3/min	Air compressor>0.3m3/min	Air compressor>0.3m3/min
Total power supply	220V 50Hz 2.4Kw	380V 50Hz 6.5Kw	380V 50Hz 6.5Kw	380V220v 50Hz 6.5Kw
Main motor	0.75Kw	1.5Kw	1.5KW	1.5KW
PVC hard Film	0.15-0.5xll0mm	0.15-0.5X HOmm	0.15-0.5x 160mm	0.15-0.5x 160mm
PTP Aluminum film	0.02-0.035 x HOmm	0.02-0.035 x HOmm	0.02-0.035 x 160mm	0.02-0.035 x 250mm
Mold cooling	Tap water or Recycling water	Tap water or recycling water	Tap water or recycling water	Tap water or recycling water
Overall Dimension(LxWxH)	1450x590x 1100mm	2315×635×1405mm	2715 x 685 x 1405mm	3000x730x1600mm
Weight	465kg	820kg	1150KG	1400kg
Noise	<75dBA	<75dBA	<75dBA	<75dBA

Work process:
1. Forming (up and down heating)
2. Heat sealing (upper heating)
3. Code
4. Indentation (can be heated in a small amount)
5. Cutter
6. Forming and outputting finished products



1. Faster Speed-Double heater plate and roller type sealing.
2. Easier Operation-Adopts top brand PLC controller displayed in Chinese and English, speed control, the length of blister traction adjustable
3. Thermal temperature control and test, overloading protection, PVC and PTP packing material position test, feeder, material position test, failure automatic debug and alarm, automatic protection and stop running.
4. Ensuring accurate registration -Adopts auto photoelectric register device for patterns and words of Al foil driven by step motor, perfect performance.
5. Discharging finished products in the right order -an automatic collection of bad products, and auto rewinding of strap material to ensure easy collection.
6. Auto closing and opening of forming plate helps delay the running time after dropping down the heat plate and also makes packing material efficiently used.
7. High Feeding efficiency, reliability, and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)
8. Auto alarm and stop of the machine when PVC finds it to be lacking or ruptured provides much convenience to the operator for timely PVC replacement or joint PVC.
9. "GMP" requirements -All parts contact with material including the hopper adopt high-level stainless steel.

Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our packing line.
3. Provide business consulting and technical support, as well as a free professional packaging solution
4. Make a machine layout for customers based on customers' factories.

After-sales service
1. Providing professional installation instructions and video of troubleshooting.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen, inverter, PLC, temperature controller, and photoelectric sensor with freight prepaid.
4. Engineers are available to service the machinery overseas, and buyers pay 180 US dollars daily service fees and travel expenses.
5. Pick-up services at Nanjing Lukou airport, providing packaging solutions and testing material on machines, full refund if unsatisfied with the machine.
