Basic Info.
Model NO.
ASTM, AISI, GB, JIS, DIN, EN
Application
Cans Package
Edge
Slit edge
Stock
Stock
Product Name
Tin Coil
Brand
Wanshida
Technical
Cold Rolled
Tin Coating
1.1/1.1 2.8/2.8 5.6/5.6
Thickness
0.1 0.11 0.12 0.15 0.18 0.2 0.3 0.4mm
Certificate
CE ISO BV SGS
Spangle Type
Zero Spangle
Tolerance
±1%
Delivery Time
Within 10days
Width
700-1500mm
MOQ
5 Tons
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Oiled or Non-Oiled
Non-Oiled
Coil Weight
3-10ton
Payment
Tt LC
Transport Package
Standard Export Packing
Specification
0.1 0.15 0.2 0.25 0.3 0.4mm
Trademark
WANSHIDA
Origin
China
HS Code
7225910000
Production Capacity
100000 Tons/Year
Product Description
Product Description
Tinplate coil is a general term for electroplated tin plate, which refers to a cold-rolled low-carbon steel sheet or strip coated with commercial pure tin on both sides. The main role of tin is to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, weldability and aesthetics of tin, resulting in a material that is corrosion resistant, non-toxic, high strength and good ductility.
Product Parameters
| Item | Coil | Sheet | Tolerance |
| Annealing | BA/ CA | BA/ CA | - |
| Thickness | 0.14 - 0.55 mm | 0.14 - 0.55 mm | ± 3% |
| Width | 700 - 1,050 mm | 700 - 1,050 mm | -0/ +2mm |
| Length | - | 500 - 1,200 mm | -0/ +2mm |
| Weight | 3 - 15 MT per coil | 2 MT Max per bundle | ± 0.3% |
| Inside Diameter | 420/ 508 mm | - | ± 10mm |
| Outside Diameter | 1,800 mm | - | - |
| Remark | Temper | Hardness (HR30T) | Yield Strength (Mpa) | Features | Typical Application | ||
| JIS G3303-2008 | ASTM A623M-06a | DIN EN10202-2001 | |||||
| Single Reduced (SR) | T-1 | T49 | TS230 | 49 ± 3 | 230 ±50 | Deep drawing which requires large flexibility. | Drawn and ironed cans, nozzles, spouts, closures, mounting cup, oil filter. |
| T-2 | T53 | TS245 | 53 ± 3 | 245 ±50 | Moderate drawing with some stiffness. | Ring and plugs, dome tops, closures, shallow drawn parts. Drawing can, body, end for large can. | |
| T-2.5 | T54 | TS260 | 55 ± 3 | 260 ±50 | Combines the drawability of T-2 and the stiffness of T-3. | Battery shells, small can ends and bodies | |
| T-3 | T57 | TS275 | 57 ± 3 | 275 ±50 | Shallow drawing, proper stiffness to minimize fluting and prevent buckling. | Top and bottom of cans, can ends and bodies, large diameter closures, crown caps. | |
| T-3.5 | T59 | TS290 | 59 ± 3 | 290 ±50 | Items that require better formability than T-4. | General use, pail, 18L, 4L | |
| T-4 | T61 | TH415 | 61 ± 3 | 415 ±50 | Moederate forming. Moderate (comparatively large) stiffness. | Can bodies and ends, crown caps, closures. Body and end for small can. | |
| T-5 | T65 | TH435 | 65 ± 3 | 435 ±50 | High Stifness, excellent buckling resistance. Increased stiffness to resist buckling. | Can ends and bodies requiring intensity. Body and end for small can. | |
| Double Reduced (DR) | DR-7M | T71 | TH520 | 71 ± 5 | 520 ±50 | Moderate strength and stiffness with moderate forming. | DRD bodies, dome, Lug cap & 3 piece bodies |
| DR-8 | T72 | TH550 | 73 ± 5 | 550 ±50 | High strength and stiffness. | DRD bodies, end, Lug cap & 3 piece bodies | |
| DR-8M | T73 | TH580 | 73 ± 5 | 580 ±50 | |||
| DR-9 | T75 | TH620 | 76 ± 5 | 620 ±50 | Higher strength and stiffness. | DRD bodies, Lug cap & 3 piece bodies Thnner guage body, end, DRD cans, caps. | |
| DR-9M | T76 | - | 77 ± 5 | 660 ±50 | |||
| DR-10 | - | - | 80 ± 5 | 690 ±50 | Very large stiffness and strength | DRD bodies, Lug cap & 3 piece bodies Thnner guage body, end, DRD cans, caps. | |
| Note: Making cans with DR materials, please pay a special attention to the rolling direction. | |||||||
| 1. Type of Steel | |
| MR | It contains few residual minor constituents and has good corrosion resistance. |
| It is widely used for the applications of containers. | |
| L | It contains particularly few residual minor constituents as Cu, Ni, Cr, Mn. |
| It is suitable for the materials of containers requiring improved corrosion resistance. | |
| D | It is an aluminum killed steel. It is suitable for the applications. |
| that bear deep drawing or other workings which may produce Luder's lines patterns. | |
| Product Finish | Code | Steel base | Product | Flow-melted | Nominal surface roughness of the steel base | |
| Euro | China | Ra (μm) | ||||
| Bright | BR | B | smooth | Tinplate | Yes | ≤ 0.35 |
| Fine stone | FS | R | fine stone | Tinplate | Yes | 0.25 - 0.45 |
| Stone | ST | R2 | stone | Tinplate | Yes | 0.35 - 0.60 |
| Silver | SG | S | shot blast | Tinplate | Yes | ≥ 0.90 |
| Matt | MM | M | shot blast | Tinplate | No | Various |
| Fine stone | FS | R2 | fine stone | TFS/ ECCS | - | 0.25 - 0.45 |
| Stone | ST | R1 | stone | TFS/ ECCS | - | 0.35 - 0.60 |
| Note 1 | Double reduced product is only supplied as stone finish | |||||
| Note 2 | Sub-classfied based on the surface finishing of the blackplate. | |||||
| Note 3 | The appearance is governed by: | |||||
| a) | the surface characteristics of the steel base which principally result from controlled preparation of the work rolls used during the final stages of temper rolling; | |||||
| b) | the mass of the coating applied; and | |||||
| c) | whether the tin layer is flow-melted or unflow-melted. | |||||
| Surface finish | Characteristic | |||||
| Bright finish | Glazed surface obtained after melting treatment of electrotinned smooth raw materail strip with extremely fine rubstone fingure by processing. | |||||
| Stone finish | Glazed surface obtained after melting treatment of electrotinned smooth raw materail stripfeaturing certain rubstone figures. | |||||
| Silver finish | Glazed surface obtained after melting treatment of electrotinned smooth raw material strip with rough matt furface. | |||||
| Matte finish | Matt surface of general matt raw material strip without melting treatment. | |||||
| 3. Coating Weight | ||||
| 1) Tinplate (ETP) | ||||
| Former Coating | Coating Weight | Nominal Coating Weight | Minimum average | |
| Designation | Code | (g/m2) | (g/m2) | |
Equally Coated | 10# | 1.1/ 1.1 | 1.1/ 1.1 | 0.9/ 0.9 |
| 20# | 2.2/ 2.2 | 2.2/ 2.2 | 1.8/ 1.8 | |
| 25# | 2.8/ 2.8 | 2.8/ 2.8 | 2.5/ 2.5 | |
| 50# | 5.6/ 5.6 | 5.6/ 5.6 | 5.2/ 5.2 | |
| 75# | 8.4/ 8.4 | 8.4/ 8.4 | 7.8/ 7.8 | |
| 100# | 11.2/ 11.2 | 11.2/ 11.2 | 10.1/ 10.1 | |
Differentially Coated | 25#/ 10# | 2.8/ 1.1 | 2.8/ 1.1 | 2.5/ 0.9 |
| 50#/ 10# | 5.6/ 1.1 | 5.6/ 1.1 | 5.2/ 0.9 | |
| 50#/ 25# | 5.6/ 2.8 | 5.6/ 2.8 | 5.2/ 2.5 | |
| 75#/ 25# | 8.4/ 2.8 | 8.4/ 2.8 | 7.8/ 2.5 | |
| 75#/ 50# | 8.4/ 5.6 | 8.4/ 5.6 | 7.8/ 5.2 | |
| 100#/ 25# | 11.2/ 2.8 | 11.2/ 2.8 | 10.1/ 2.5 | |
| 100#/ 50# | 11.2/ 5.6 | 11.2/ 5.6 | 10.1/ 5.2 | |
| 100#/ 75# | 11.2/ 8.4 | 11.2/ 8.4 | 10.1/ 7.8 | |
| 125#/ 50# | 15.1/ 5.6 | 15.1/ 5.6 | 13.9/ 5.2 | |
| Differential Marking | ||||
| a) Edge Marking : Low Coating Side with interrupted lines | ||||
| b) Line Marking : Heavy Coating Side with continuous lines | ||||
| c) Tin coating weight can be flexibly adjusted according to customer's requirement | ||||

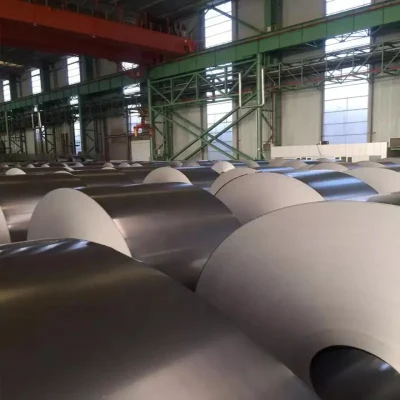

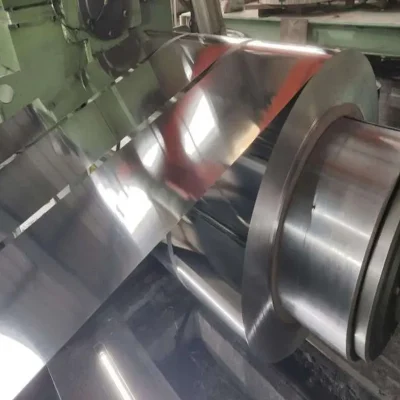

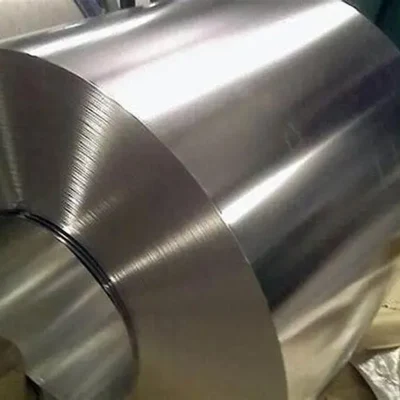

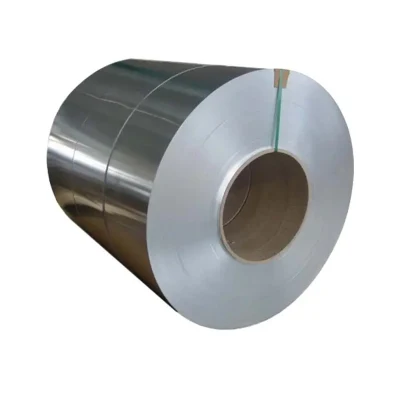

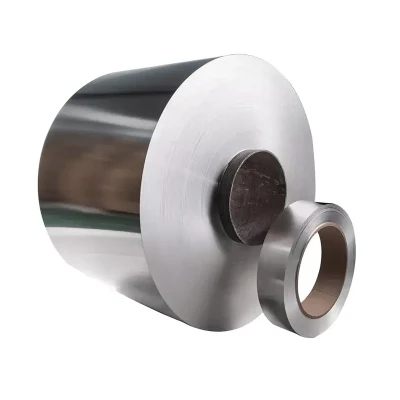

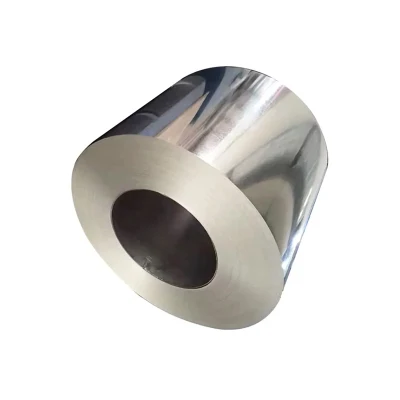

Detailed Photos
Company Profile
Wanshida Steel (Shandong) Co., Ltd. is a large enterprise specializing in the production and sales of steel, the company is mainly engaged in the import and export of steel raw materials, the production and export of carbon steel, stainless steel, color coated galvanized ,Tin coating coil and other products. It has international advanced production equipment such as hot rolling mills and cold rolling mills.
The products are widely used in electrical, chemical, pipeline, machinery manufacturing, automobile, shipbuilding, aerospace, construction and other industries. The factory can produce according to GB, ASTM, DIN and EN standards The company has developed into a high-quality supplier in the steel industry. The company has passed CE certification, and its products are popular in North America, South America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.
The products are widely used in electrical, chemical, pipeline, machinery manufacturing, automobile, shipbuilding, aerospace, construction and other industries. The factory can produce according to GB, ASTM, DIN and EN standards The company has developed into a high-quality supplier in the steel industry. The company has passed CE certification, and its products are popular in North America, South America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.
Packing and Shipping
Application
Customer Feedback
FAQ
1. Minimum Order Quantity?
A: The MOQ is 22 tons, the galvanized steel sample is available as long as your quantity is ok.
2. What kind of terms of payment?
A: T/T, L/C are available.
3. What grams of the product can you offer?
A: These products can be customized according to your requirement.
4.Is free sample available?
A: Yes, free sample is available.
5. Can you do Customization & Reproduction if I provide a photo?
A: Yes, we do Customization & Reproduction service.
6. Does the packaging safe and arrive in good conditions?
A: Yes, safe Packing guarantee , all the products will arrive your door under good conditions.
We response to problem of shipping if there unfortunately is.
7. How long does it usually take to deliver the product?
A: We will make the shipment to you immediately. It will take about 18 to 40 days arrive worldwide. It depends on the specific quantity.
