High Capacity Robot System Packing Machine for Bags/Cans/Tins

Upgrade to our High Capacity Robot System Packing Machine for efficient bag, can, and tin packaging. As a factory, we offer top-quality industrial solutions.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Drawings
  • Advanced Features
  • Application Scenario
  • Company Profile
  • Certifications
Overview

Basic Info.

Model NO.
IRB4600
Automatic Grade
Automatic
Filling Valve Head
Multi-Head
Structure
Linear
Packaging
Bottle
Packaging Material
Plastic
Capacity
3-6cases/Min
Applicable Carton Size
L300-500mm W200-400mm H100-300mm
Power Source
380V 50Hz/4kw
Lift Limit
3300mm From The Highest Lifting Point to The Groun
Air Pressure
0.6-0.8MPa
Weight
About1500kg
Transport Package
Wooden Case
Specification
2240*2250*2780MM
Trademark
Jinwang
Origin
Jiangsu, China
HS Code
8428399000
Production Capacity
10 Set/Month

Packaging & Delivery

Package Size
250.00cm * 250.00cm * 300.00cm
Package Gross Weight
1700.000kg

Product Description

IRB4600 Robot packing machine

High Capacity Robot System Packing Machine for Bags/Cans/Tins

Product Description

Introduction

The machine adopts ABB Robot to automatically load the whole column of bottles into bound cartons, and adopts composite gripper, which can not only realize automatic packing, but also realize the function of automatic bottom plate and top plate.
The mechanical integration is simple and the programming is very convenient. It can be applied to the automatic production of bottled products in food, daily chemical, medicine, pesticide, veterinary medicine and other industries.




High Capacity Robot System Packing Machine for Bags/Cans/Tins



Drawings



High Capacity Robot System Packing Machine for Bags/Cans/Tins
  Technical Parameters
1      Capacity 3-6Cases/Min(Without medium board)
*The actual production capacity changes according to the product size, packaging material and material characteristics.
2 Applicable Carton size L300-500mm   W200-400mm   H100-300mm
3 Applicable bottle size Φ40-90mm   H80-230mm
4 Air pressure 0.6-0.8MPa
5 Powder supply ~380V   50Hz/4KW
6 Lift Limit 3300mm from the highest lifting point to the ground
7 External Dimension 2240×2250×2780mm(L×W×H)
8 Weight About1500Kg





Advanced Features

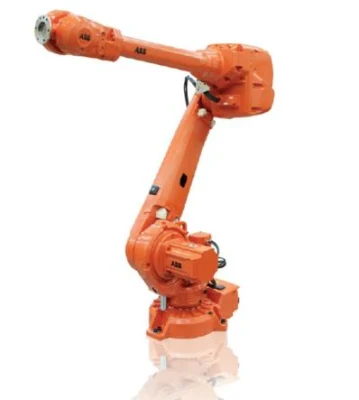

ABB Robot is used for automatic packing, with simple programming and convenient use.

High Capacity Robot System Packing Machine for Bags/Cans/Tins

High Capacity Robot System Packing Machine for Bags/Cans/Tins

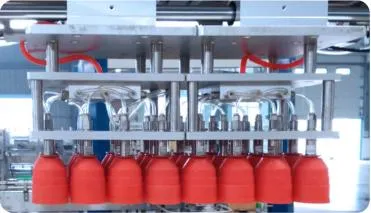

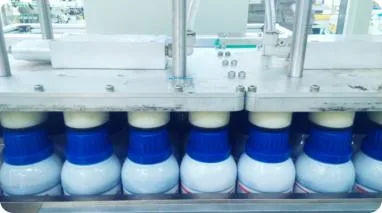

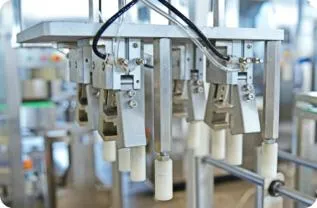

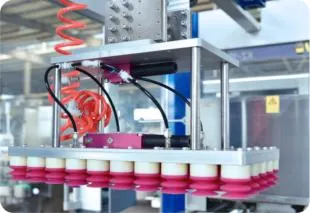

Convenient adjustment: through the replacement of different packing molds (bottle gripper, suction cup, gripper, etc.), the quick assembly connection can quickly switch the specifications. The owner is required to provide bottles, caps and supporting cartons. Our company needs to make packing molds according to packaging materials and cartons.









    High Capacity Robot System Packing Machine for Bags/Cans/Tins



    High Capacity Robot System Packing Machine for Bags/Cans/Tins

    High Capacity Robot System Packing Machine for Bags/Cans/Tins



    Application Scenario

    High Capacity Robot System Packing Machine for Bags/Cans/Tins

    Company Profile

    Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd (JWIM) established in May 2005. JWIM is a professional manufacturer engaged in agricultural and animal husbandry intelligent factory. We are a high-tech enterprise integrated with R&D, manufacturing, marketing and service.
    JWIM products focus on the agriculture and animal husbandry industry, so far it has obtained more than 100 patent certificates, among them JWIM intellectual formulation workshop has 8 invention patents and 8 utility model patents. The products have been exported to more than 50 countries at home and abroad. We have provided professional services to more than 3, 000 agricultural and animal husbandry customers.
    In order to adapt to the development of Industry 4.0 and Made in China 2025, the intellectual formulation workshop researched and developed by Jinwang is a safe, environmentally friendly, intelligent, integrated and efficient formulation workshop.
    Our products include intelligent processing, intelligent packaging, intelligent storage, intelligent general control and intelligent factory. Our services include operation and maintenance services (Jinwang agrochemical Business School), remote services, contracted services, service station services, integrated workshop transformation services and EPCM services for intelligent factories.
    We have an after-sales team of 200 service engineers, including 50 overseas after-sales service engineers, serving Vietnam, Indonesia, Thailand, Philippines and other countries all over the world. The global Internet service center can provide remote services to help customers solve problems online.
