Basic Info.
Model No.
T1, T2, T3, T4, T5
Technique
Cold Rolled
Special Use
High-Strength Steel Plate
Material
SPTE SPCC T3 T5 Plate
Coating
1.1/1.1, 2.8/2.8/5.6/5.6
Annealing
Ba, Ca
Trade Term
Fob, C&F
Surface
Bright, Golden
Sample
Free
Thickness
0.135-0.7mm
Apply Product
Ship Plate, Boiler Plate, Container Plate, Flange
Width
300-1250mm
Hardness
T1, T2, T3, T4, T5, Dr8
MOQ
5t
Payment Term
T/T, LC
Transport Package
Standard Export Package
Specification
300-1250mm
Trademark
TIANZHU
Origin
Shangdong
HS Code
8007002000
Production Capacity
30000
Product Description
Product Description
Tianzhu Special steel co.,ltd ,which is a professional manufacturer of Tinplate Coil
/Tinplate Sheet, we can produce the 1.1/1.1 2.8/2.8 5.6/5.6 etc.tin coated with Bright, Stone, Silver, Matt surface treatment. It's mainly used to make the chemical can,aerosol can and different food can,battery,electric cable and other industries.
/Tinplate Sheet, we can produce the 1.1/1.1 2.8/2.8 5.6/5.6 etc.tin coated with Bright, Stone, Silver, Matt surface treatment. It's mainly used to make the chemical can,aerosol can and different food can,battery,electric cable and other industries.
| Tinplate Specification | |
| Commodity | Tin Coil Tinplate Strip with Tin Sheet |
| Standard | GB2520-2000,JISG3303-2002and DINEN10202-2001 |
| Material | MR SPCC |
| Thickness | 0.135-0.7mm (tolerance -/+0.01 mm) |
| Width | 300~1250mm (Tolerance: 0~3mm) or as per customers' requires |
| Cutting Length | 400~1250mm (Tolerance: 0~3mm) or as per customers' requires |
| Annealing | BA & CA |
| Temper | T1 T2 T3 T4 T5 DR8 DR9 BA and CA both |
| Tin Coating | 1.1/1.1 2.8/2.8 5.6/5.6 Or as per customers' requires |
| Surface finish | Bright, Stone, Silver, Matt |
| Coil Diameter | ID 420/ 508/610mm, OD from 1,000 to 1,250m |
| Coil Weight | 3~10 MT |
| Package | Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires. |
| Product line | BA furnace line: LOI company CA line: SMS |
| Applications | Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
| Standard for Temper | |||
| Chinese Standard | Japanese Standard | American Standard | European Standard |
| GB/T 2520-2008 | JIS G3303-2008 | ASTM A623M-06a | DIN EN10202-2001 |
| T-1 | T-1 | T-1 (T49) | TS230 |
| T-1.5 | - | - | - |
| T-2 | T-2 | T-2 (T53) | TS245 |
| T-2.5 | T-2.5 | - | TS260 |
| T-3 | T-3 | T-3 (T57) | TS275 |
| T-3.5 | - | - | TS290 |
| T-4 | T-4 | T-4 (T61) | TH415 |
| T-5 | T-5 | T-1 (T65) | TH435 |
| DR-7M | - | DR-7.5 | TH520 |
| DR-8 | DR-8 | DR-8 | TH550 |
| DR-8M | - | DR-8.5 | TH580 |
| DR-9 | DR-9 | DR-9 | TH620 |
| Tin Coating Weight | |||
| Type | Designation of tin coating weight | Min.average tin coating weight(g/m2) | Former Coating Designation |
| Equal tin coating | 1.4/1.4 | 1.2/1.2 | #15 |
| 2.2/2.2 | 2.0/2.0 | #20 | |
| 2.8/2.8 | 2.45/2.45 | #25 | |
| 5.6/5.6 | 5.05/5.05 | #50 | |
| 8.4/8.4 | 7.55/7.55 | #75 | |
| 11.2/11.2 | 10.1/10.1 | #100 | |
| Differentially Coating | 1.4/2.8 | 1.2/2.45 | #15/25 |
| 2.2/2.8 | 2.2/2.45 | #20/25 | |
| 2.8/5.6 | 2.45/5.05 | #25/50 | |
| 2.8/8.4 | 2.45/7.55 | #25/75 | |
| 2.8/11.2 | 2.45/10.1 | #25/100 | |
| 5.6/8.4 | 5.05/7.55 | #50/75 | |
| 5.6/11.2 | 5.05/10.1 | #50/100 | |
| 8.4/11.2 | 7.55/10.1 | #75/100 | |
| Surface finish | ||
| Surface finish | Nominal surface roughness (um Ra) | Description |
| Bright finish | ≤Q0.35 | Glazed surface obtained after melting treatment of electrotinned smooth raw materail strip with extremely fine rubstone fingure by processing. |
| Stone finish | 0.25~0.60 | Glazed surface obtained after melting treatment of electrotinned smooth raw materail stripfeaturing certain rubstone figures. |
| Silver finish | 0.50~1.00 | Glazed surface obtained after melting treatment of electrotinned smooth raw material strip with rough matt furface. |
| Matte finish | 0.80~2.50 | Matt surface of general matt raw material strip without |

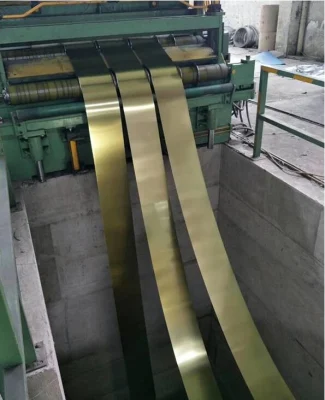

Production Process:
Packing Process:
Application:
Delivery:
FAQ
Q: What kind of work does your company do?
A: Our company is a professional manufacturer.We mainly produces wear resistant/weather resistant/boiler/shipbuilding/stainless steel/aluminum /checkered etc.steel plate/sheet.
Q: How can you assure your quality?
A: 1.We can provide you certificate of quality such as MTC.
2.We are willing to accept the third party inspection, such as SGS,BV,CE and so on.
Q: Can you accept customization?
A: Yes.we can do customization for you.
Q: Can you accept trail orders?
A: Generally our MOQ is 5 ton. But if you want to place a trail order as the beginning of our cooperation,
we can accept smaller quantity at frist. Surely we will have further and longer partnership after the beginning.
