PRODUCTS DETAILS

Basic Info.

Model NO.
CG12
Filling Principle
Pressure
Packaging Container Lifting Structure
Chute Lifting
Structure
Rotary
Packaging
Aluminum Can
Packaging Material
Plastic
Filling Machine
2000-30000c/H
Suitable Can Size
100-2000ml
Suitable Drink
Beer/Carbonated/ Juice
Transport Package
Wooden Case
Specification
12CBM
Trademark
Newlink
Origin
China
HS Code
8422301090
Production Capacity
100/Year

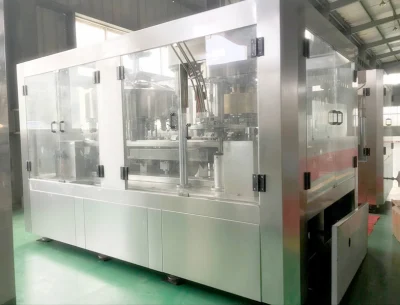

Product Description

Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F Complete Beer Production Line Craft Beer Can Carbonated Soft Drink Cans Filling Machine

1. This filling machine is used for filling carbonated beverage in cans , such as beer, cola, energy drinks and soda water.

2. This beverage can filling machine can be used for different material of cans, such as plastic, iron, aluminum and so on ,and the different size of cans is allowed.We can design the euipment according to your requirements

3. This beverage can filling machine is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry.
Technical parameters
Containers and specifications
Project Name: Can Beer  Drink Filling Line Pressure Filling beer
Adjustable specifications of the bottle type
Material Shape Can diameter Adapt can height
Aluminum can
Tin can
PET can

Round

Φ52.3~Φ65.5mm

39~160mm
Total power Power voltage Control voltage Air consumption
11KW 380 V 50HZ 3phase+N+G 24 V DC/AC 1m3/h
    Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F

Specific Images

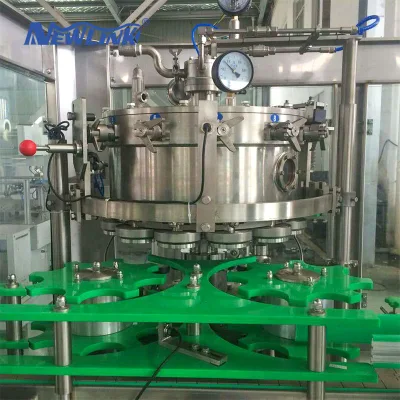

Filling parts:
Maximum CO2 content:  5.0g/L
Filling pressure : (CO2) 0.15~0.4Mpa
Filling method :Isobaric pressure type
Filling valve center diameter : Ф2760
Filling valve distance:  117mm
Belt height:  1150~1300mm
Filling temperature:  0-4°C


Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F

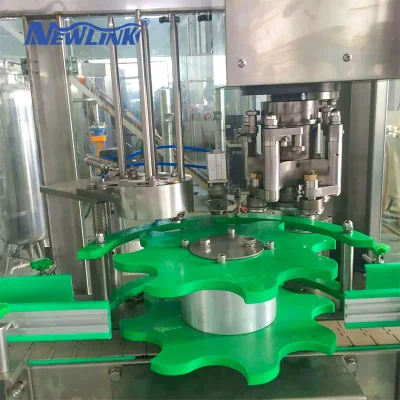

Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F Capping parts:
Capping head material:  9Cr18
Clam head life:  ≥ 240 million cans (aluminum cans)
Single head : ≥ 30 million cans
Sealing loss:  ≤ 10,000 parts, no damage to the tank
Cover loss : ≤ 10,000
Conveyor belt:
Straight conveying system through the feet stand on the ground, the motor installed on the conveyor system side. Each motor with reducer and can adjust the speed. Filling the bottle, packaging via conveyor system platform, convenient and quick.
Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F
Auxillary Equipment:
Empty can upload machine:
The pop can empty can depalletizer is the mainly suitable for automatic depalletizing of the complete piles of the empty cans. It hoists the empty cans palletized on the pallets layer by layer from bottom to top and then them to the conveying chain-plate. Used together with the empty can spraying washer, it can replace the manual ways arrangement and traditional empty can unloading machine, saving a lot of manpower and increasing production effects.
Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F

Can washing :
The empty cans that come from the can turning-over machine have a 90°turn. Then the can entering the washing tank of the empty can wash by the opening downward. There is a spray tube on the bottom of the tank and 12 nozzles that can spray 850mm clean water column. The back of the tank is the drain part. The water, which sprayed into the empty can flow back the tank, then the wastewater discharged by the discharge pipes. After cleaning the empty can have a 90°turn by the back can turning-over machine, then the can entering the feed conveyor belt by opening upward.
Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F
Can packaging machine.
1/PE film shrink wrapping machine
2/Half-tray shrink wrapping machine
3/Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F




Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F
Factory Can Filling Machine Energy Drinks Equipment Carbonated Soft Drink Craft Beer Canning Pet Aluminum Tin Can Filler and Seamer Beverage Packaging Liquid F
Installation service

When you finish the Preparation conditions,our professional after sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.


Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide 12 months Quality warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months Quality guarantee and life-long technical support.

8. Good after-sale service offered, please get back to us if you got any questions.


Quality Control
We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.
