Custom PCB Board Design and PCB Layout Design Services

Get top-notch Custom PCB Board Design and PCB Layout Design Services from our factory. We offer expert solutions for your electronic circuit needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Our Advantages
Overview

Basic Info.

Model NO.
NC-SZ-181
Production Process
Semi-Additive Process
Base Material
Copper
Insulation Materials
Organic Resin
Brand
New Chip
Soldermask Color
Green, Yellow, Blue, Black, White...
Sample
Available
OEM/ODM
Available
Test
100%E-Testing
Color of Silk Screen
Green, Purple, Black
Service
OEM / Dfm
PCB Factory
Yes
Certificate Gurantee
Yes
Transport Package
Vacuum Packaging, Carton Box
Specification
FR-4 SILICON COMPONENTS
Trademark
New Chip
Origin
Guangdong, China
HS Code
8534009000
Production Capacity
30000 Square Meter/Square Meters Per Month

Product Description

Custom PCB Board Design and PCB Layout Design Services
Product Description

What we offer:Custom PCB Board Design and PCB Layout Design Services

Products Application:
Communication, internet, industrial control, computer application, consumptive electronics, spaceflight, curative application Etc.

Specifications

Details

Material Type

FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon*,Taconic, Rogers*, Polyimide*, Kapton,Dupont

Material Thickness ( in inches)

0.062", 0.080", 0.093", 0.125", 0.220", 0.047", 0.031", 0.020", 0.005"

Layer count

1 to 28 Layers

Max. Board Size

23.00" x 35.00"(580mm*900mm)

IPC Class

Class II, Class III , Class 1

Annular Ring

5 mil/side or Greater (Min. Design)

Finish Plating

Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold, Other

Copper Weight

0.5OZ-7OZ

Trace/Space Width

3 Mils or Greater

Drill Clearance

0.1mm(laser drilling)

Plated Slots

0.036 or Greater

Smallest Hole (Finished)

0.1mm or Greater

Gold Fingers

1 to 4 Edge (30 to 50 Micron Gold)

SMD Pitch

0.080" - 0.020" - 0.010"

Soldermask Type

LPI Glossy, LPI-Matte, SR1000

Soldermask Color

Green, Red, Blue, Black, White, Yellow,

Legend Color

White, Yellow, Black, Red, Blue

CNC Route Point

Any

Minimum Route Width

0.031"

Scoring

Straight Lines, Jump Scoring, Panel Edge to Edge, CNC*

Body Gold

HARD*, IMMERSION* (up to 50 MICRON GOLD)

Data File Format

Gerber 274x with embedder aperture

Fab. Drawing Format

DXF, HPGL, DWG, PDF, Gerber

E.T Testing

Flying Probe, Single Sided, 1up Plate, Clampshell, Net List

Counter Sink / Counter Bore

Availiable up to 0.250 Diameter

Control Impedence

Yes

Blind Vias / Buried Vias

Yes

Peelable Mask

Yes

Carbon

Yes

Product Show:
Custom PCB Board Design and PCB Layout Design Services

Certifications:
Custom PCB Board Design and PCB Layout Design Services
Custom PCB Board Design and PCB Layout Design Services
Packaging & Delivery:

Packaging Detail:

Anti-static bag, bubble pack, carton box,Vacuum...

Delivery Detail:

3-15Days, delivery just-in-time





Company Profile

NEW CHIP INTERNATIONAL LIMITED(Hereafter called NEW CHIP) is a professional agent and distributor of electronic components, wholly owned by H. C. C. International limited(found in 2004), whose business scope covers PCBA, ODM and electronic components.

NEW CHIP has a professional procurement team with more than 10-years' experience in industry.

Proficient in most of components and materials parameters, and with professional industry
engineers and inspectors and testing equipment to control the quality inspection, NEW CHIP will ensure you original and authentic product.

With mature storage and inventory capacity, NEW CHIP can
deliver product quickly to help you save space cost.

Except for the strategic cooperative brands: STM, Infineon, Nuvoton, NXP, Microchip, Texas Instruments, ADI, etc.

NEW CHIP also has steady & strategic cooperation relationship with electronic materials vendors in the world's hundreds of countries and regions, which assures us can offer you
certified chips with brand from original manufacture with competitive price in this industry.

NEW CHIP is devoted ourselves all effort to creating a
one-stop electronic components trading platform, providing our customers with "genuine" supplier channels, and making sure quick delivery within 2 hours.

Besides, NEW CHIP also have services to help our customers
answering relevant substitute and technical questions with our engineers follow-up the whole project process.

Custom PCB Board Design and PCB Layout Design Services
Show of Power:
Custom PCB Board Design and PCB Layout Design Services

Process Flow:
Custom PCB Board Design and PCB Layout Design ServicesCustom PCB Board Design and PCB Layout Design Services

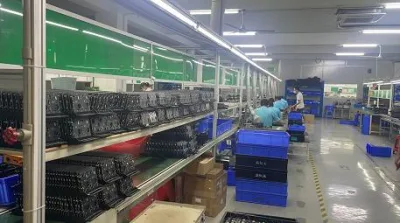

Factory strength:
Custom PCB Board Design and PCB Layout Design Services

Global Exhibition Display:
Custom PCB Board Design and PCB Layout Design Services

Our Advantages

Custom PCB Board Design and PCB Layout Design Services
Any question, Pls contact us, Thank you.
